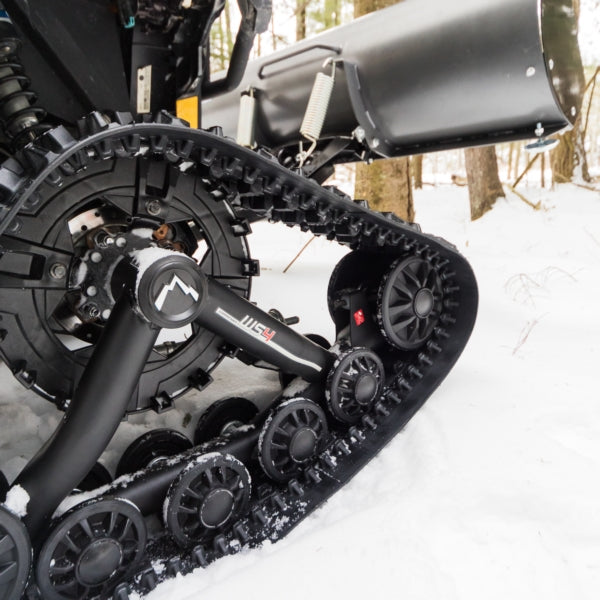

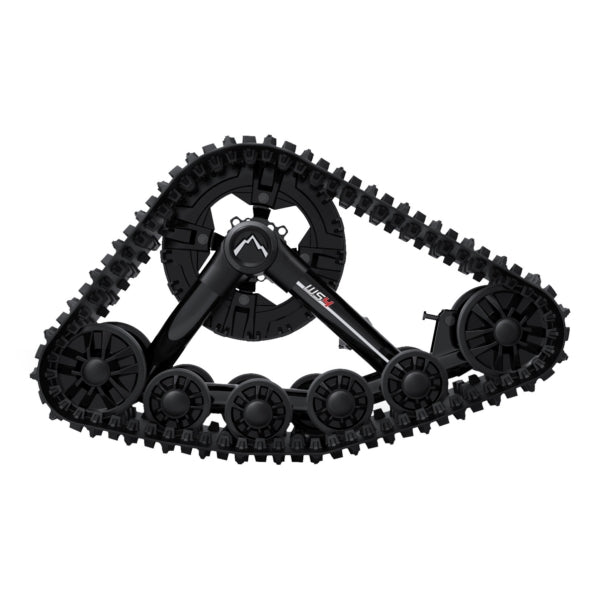

Commander WS4 Track Kit by Kimpex

Push the limits with the Commander WS4 track system, the natural evolution of four-season performance. Its redesigned design reduces steering effort and better absorbs vibrations, while maintaining the excellent traction the Commander line is known for. Its 2.5-inch steel tubing ensures unmatched strength, while its lightweight design provides optimal floatation on snow. Whether for work or adventure, the WS4 goes everywhere you go, summer or winter.

FEATURES

• 15” (381 mm) gypsy designed for four-season use
• Aggressive profile track
• HD tensioner: easy and quick to use
• Steep angle of attack for better obstacle clearance
• Wheels with rubber treads: prevents ice build-up
• Slide-free system for all-season use
• Three wheels on the ground for reduced steering effort
• Wheels with two ball bearings protected by caps: simplified maintenance
• Triangulated frame made of sturdy 2.5” (64 mm) steel tubing

Specifications:

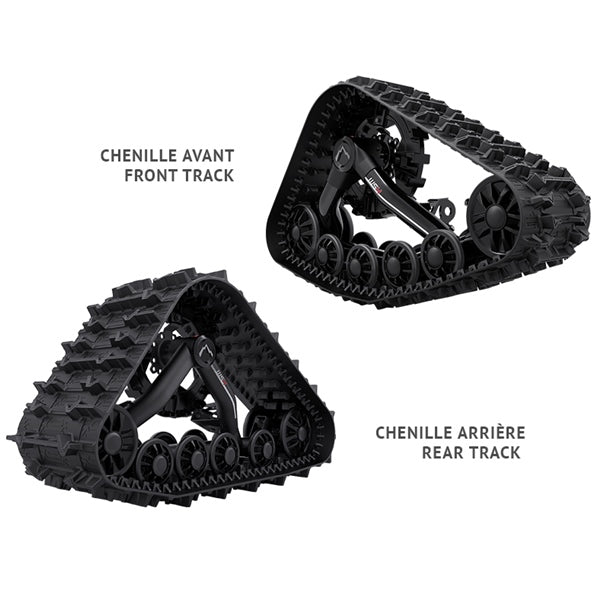

• Width: 292 mm / 11.5 in front, 330.2 mm / 13 in rear
• Length: 2460 mm / 97 in front, 2540 mm / 100 in rear
• Weight: (unattached) 72 lb / 32 kg front, 75 lb / 34 kg rear
• Frame material: Steel
• Track profile height: 25 mm / 1.00 in front, 32 mm / 1.25 in rear
• Training: Internal
• Waterline area: 1.32 m² / 2045 in² total = 0.61 m² / 945 in² forward and 0.71 m² / 1100 in² aft
• Ground clearance: Increased by 125 mm / 5 in
• Speed reduction: 35%
• Installation time: 1.5 hours
• Subsequent installation time: 30 minutes
• Applications: ATV only

Uses:

• Snow: Deep, moderate, trail and spring
• Off-snow: Swamp, mud, sand, dirt and gravel
